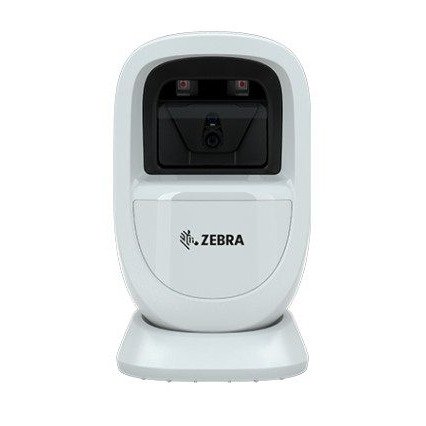

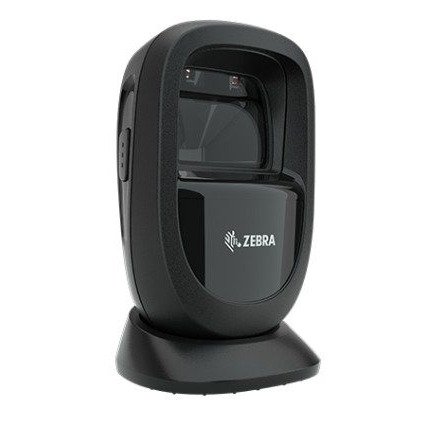

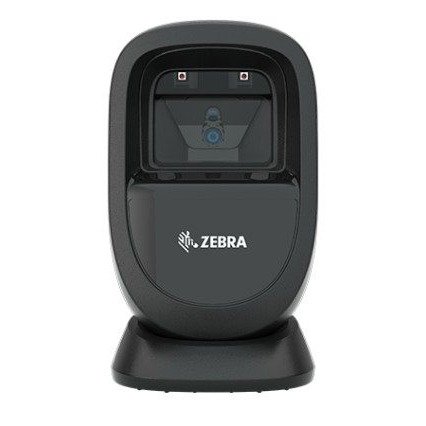

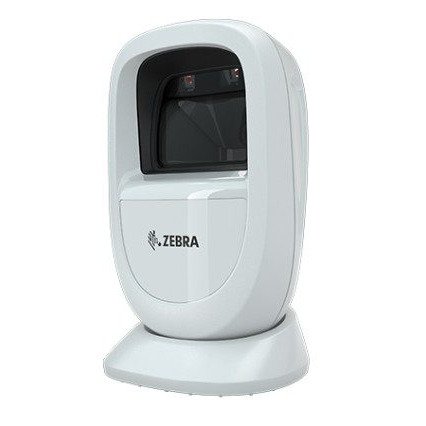

Zebra DS9308 Hands-Free Barcode Scanner
Short Description
The DS9308 Series is the little presentation scanner with big functionality. With its compact form factor and stylish aesthetics, the DS9308 Series fits anywhere — from trendy boutiques to convenience stores with limited real-estate at the checkout counter. Rapid-fire, best-in-class swipe speeds and unparalleled performance on challenging barcodes keep lines moving. And the durable design is built to handle everyday drops, bumps and spills.
Authorized Distributor of Zebra DS9308 Vertical Slot Handsfree Barcode Scanner
Physical Characteristics
| Dimensions | 5.512 in. H x 3.232 in. W x 3.150 in. D 14.0 cm H x 8.21 cm W x 8.0 cm D |
| Weight | 9.5 oz./269 g |
| Input Voltage Range | Idle: 5 ± 10% VDC @ 150ma average Scanning: 5 ± 10% VDC @ 230ma average |
| Color | Midnight Black |
Performance Characteristics
| Imager Field of View | 46° Horizontal x 29.5° Vertical |
| Light Source | Aiming pattern: single dot, 625nm LED Illumination: 630nm LEDs |
| Roll | 360° |
| Pitch | ± 65° |
| Yaw | ± 60° |
| Swipe Speed (Vertical Read Rate) | Up to 90 in./2.3 m per second |
User Environment
| Operating Temperature | 32° F to 104° F / 0° to 40° C |
| Drop Specs | Withstands multiple 5 ft./1.5 m drops to concrete |
| Humidity | 5% to 85% RH (non-condensing) |
| Ambient Light Immunity | Immune to natural and artificial ambient light (i.e. sunlight, incandescent, fluorescent,mercury vapor, sodium vapor) |
.
