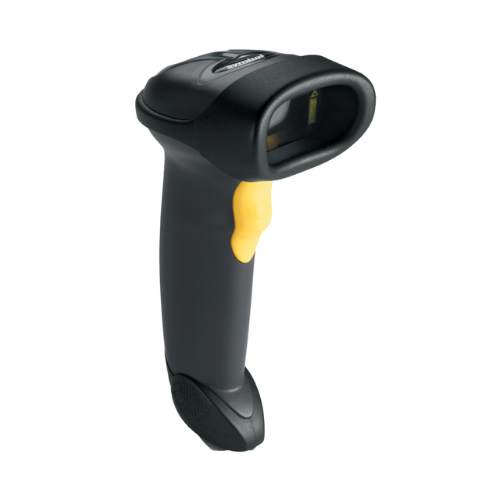

Symbol LS2208 Handheld Barcode Scanner
Short Description
Equip your workforce with the Symbol LS2208 Handheld Barcode Scanner to address your business scanning needs which have been designed under lightweight barcode scanners category and ensure a scanning range from near to a maximum of 17 inches. Symbol LS2208 is specially designed for general purposes like Education, Government entity, Hospitality, and retail shops. The device is capable of capturing 100 scans per second and supports 90 international keyboards.
Authorized Distributor of Symbol LS2208 Handheld Barcode Scanner
Physical Characteristics
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D |
| Weight | 5.3 oz./150.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Color | Cash Register White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
Performance Characteristics
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
User Environment
| Operating Temperature | 32° to 122° F/0° to 50° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C |
| Humidity | 5% - 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
Put the Zebra LS2208 Handheld Barcode Scanner to Work in
Retail
- Point of Sale (PoS)
- In-store inventory tracking
- 1D loyalty card processing
- 1D paper coupon redemption
Education
- Library book checkout
- Inventory and asset tracking
